The City of Janesville embarked on a multi-year, multi-phased strategy to revitalize its downtown and ancillary corridors to improve the quality of life for its residents and attract and promote activity in the downtown area with a new Town Square. The Town Square project spanned both sides of the Rock River and was divided into two parts – the West Town Square and East Town Square.
West Town Square
The first stage of the West Town Square project was removal of a parking plaza structure that spanned the Rock River. Making this space available for revitalization allowed the City to embrace its primary feature – the Rock River. The West Town Square was split into two sections – West Town Square South and West Town Square North.

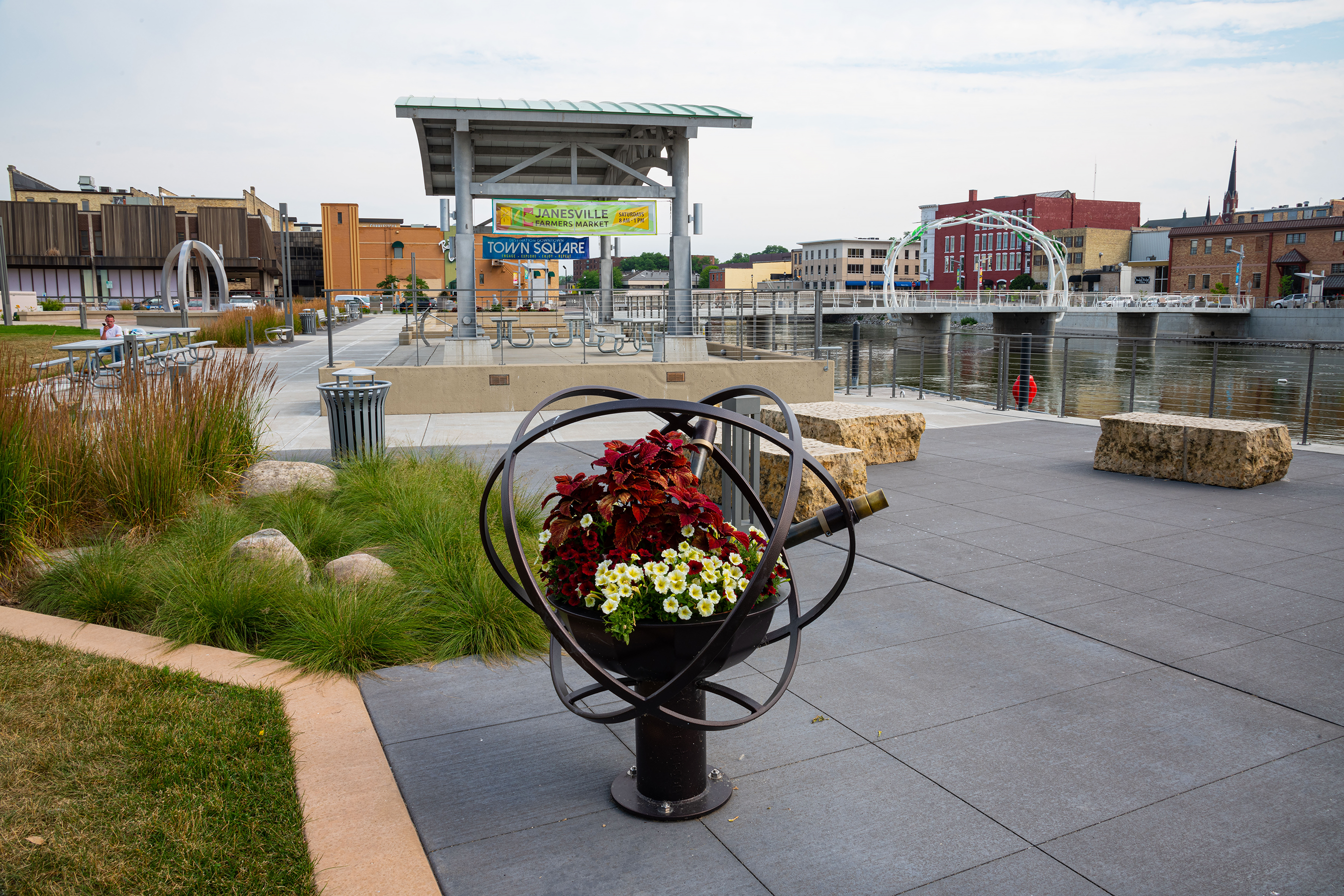

West Town Square South featured the construction of a pavilion structure, steps with integral LED lighting to provide access to the river, a floating dock, green space, relocated Ice Age Trail, drainage infrastructure, various sitting areas with amenities, LED pedestrian lighting, and utilities and walls for an interactive water feature, in anticipation of additional private funding. Also, the toe of the aging river wall was stabilized with riprap and flowable fill.

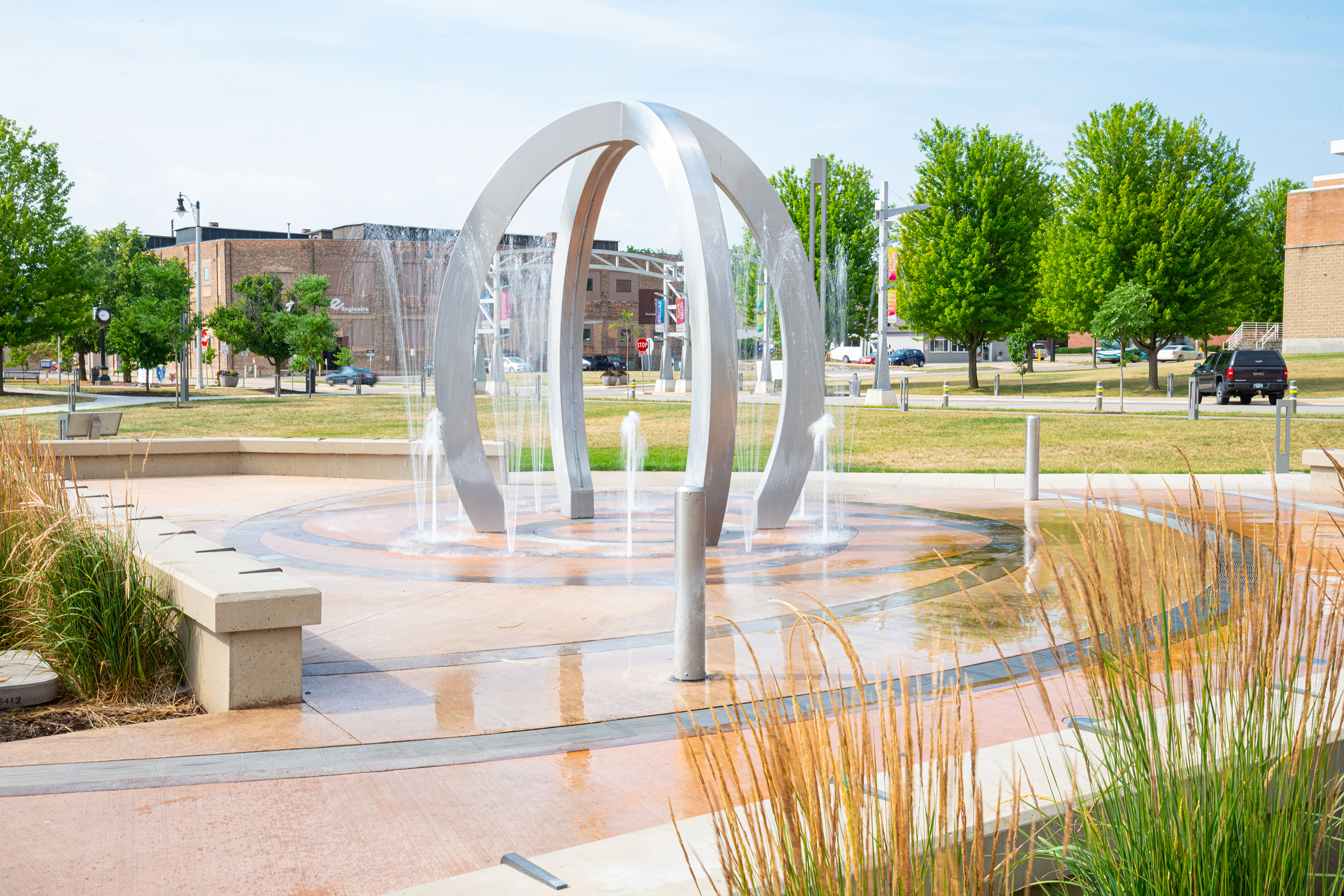

Improvements at West Town Square North included the relocation of the ice age trail and included two sections of elevated precast trail with cable railing and integral in-rail lighting, a bio-infiltration basin, reconstructed parking area, a drinking fountain, and hardscaped areas and amenities coordinated with the other Town Square stages. Custom fixtures and features, such as light poles and a kiosk provided by the Forward Janesville Foundation, were also installed. The interactive water feature that Forward Janesville Foundation funded was completed during this stage and coordinated with the bio-infiltration basin.
East Town Square

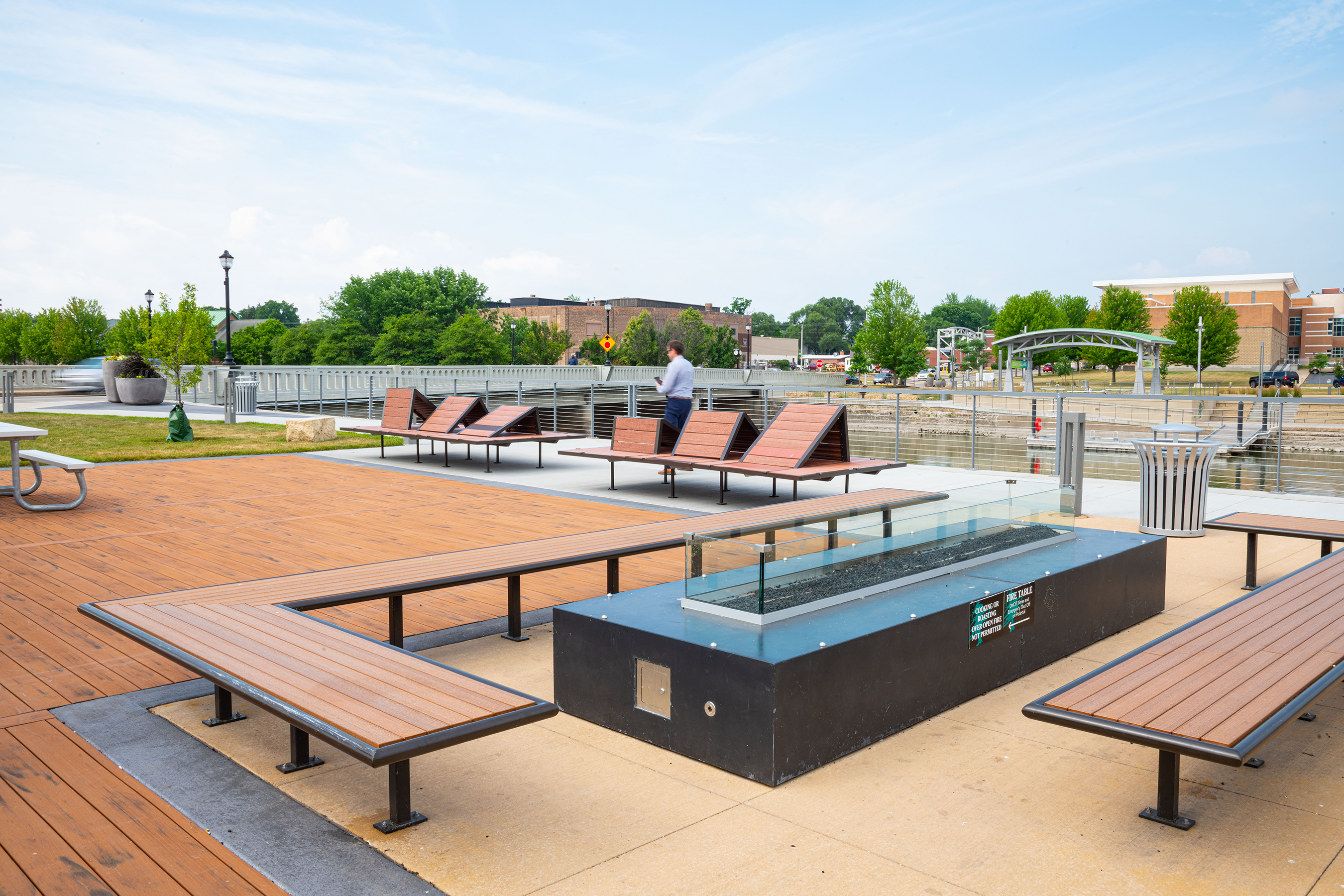

The east side of the Town Square is defined by the same palette of materials and amenities as the west side, including the custom light fixtures, gateway features, a kiosk, and a similar pavilion structure as found in the work completed in previous stages. The roadway is essentially a flexible use parking lot that supports the local businesses and can be transformed into a community space for programmed events by blocking each end of the street. The primary improvements that make it unique include an activity deck to support outdoor exercise such as yoga, a shaded plaza area with tables that give users a space to work outside or sit and have lunch, an artistic donor wall with custom sculpture that recognizes all who have financially supported the Town Square project, a pavilion structure, and a gas fire pit table.

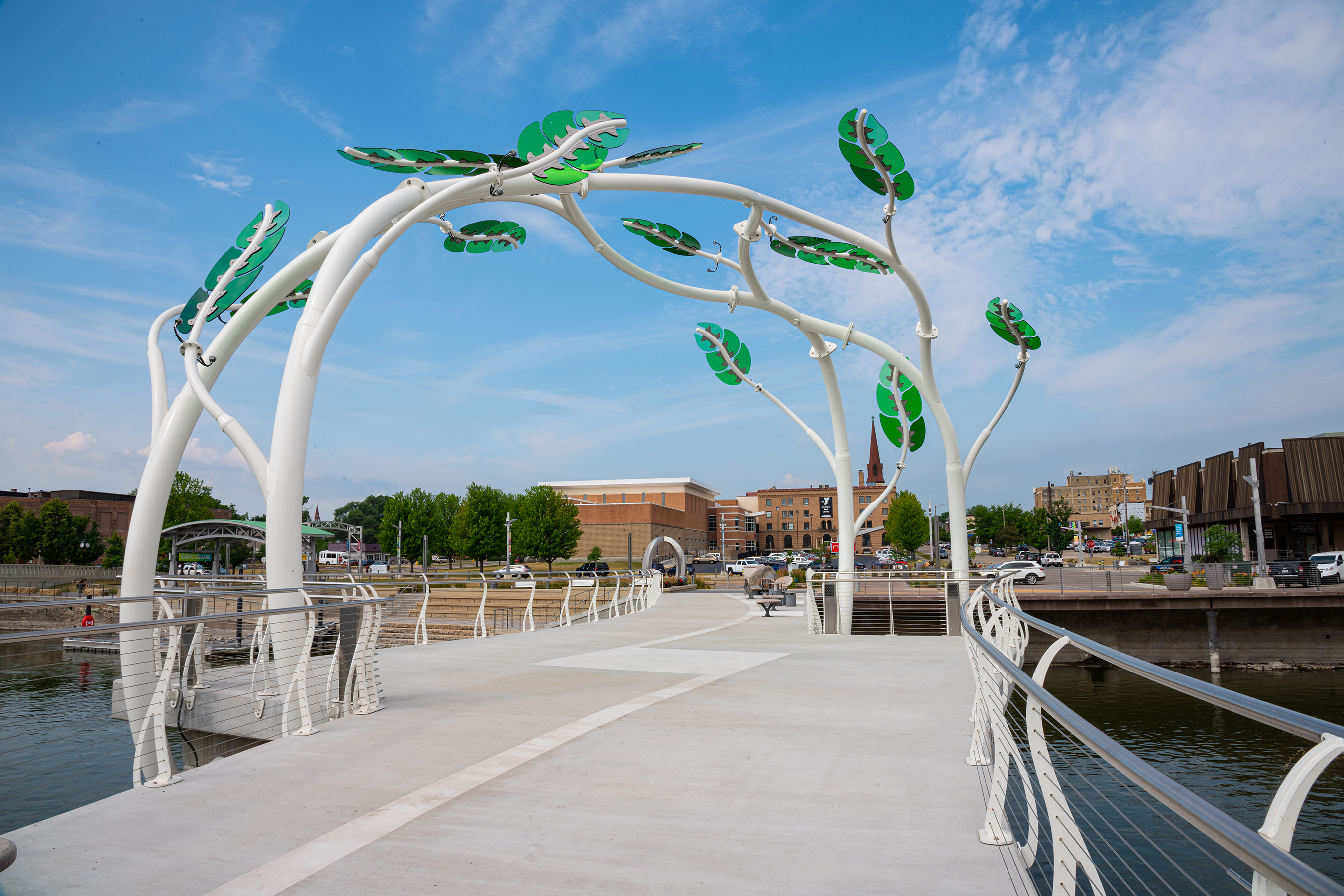

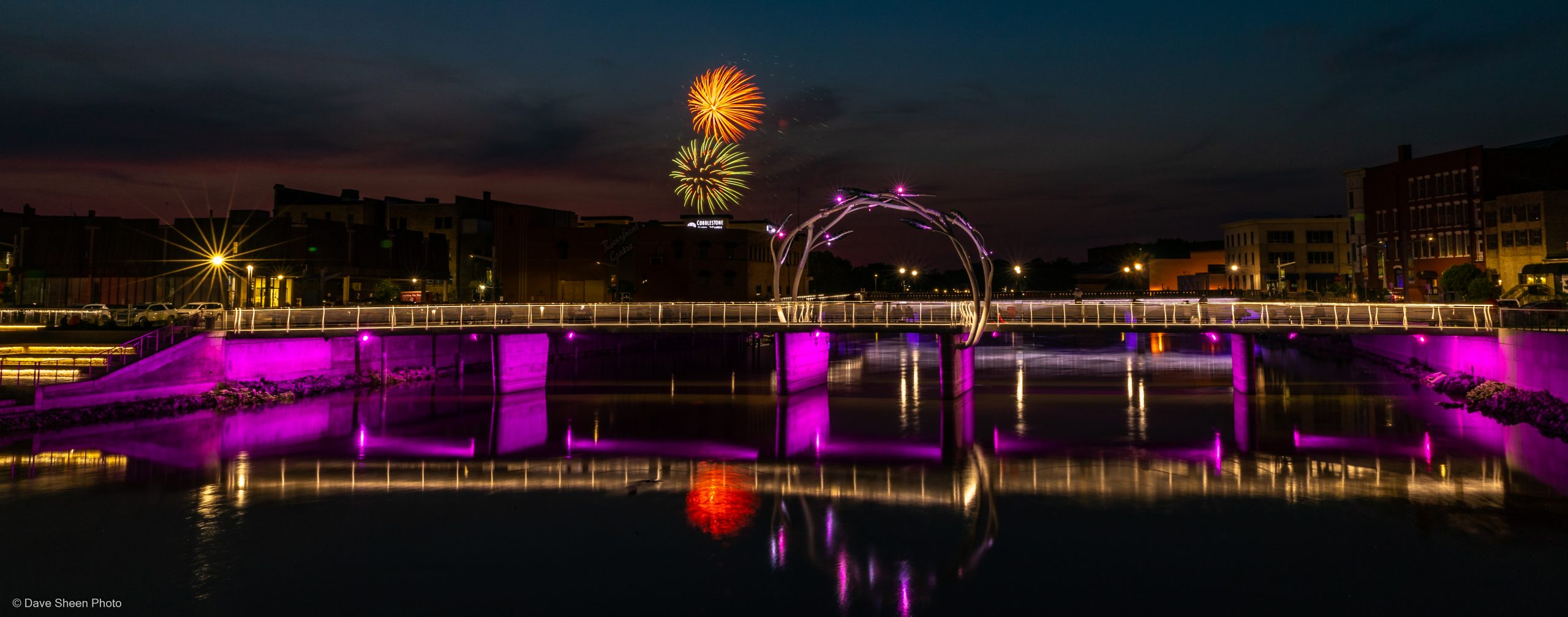

To connect East Town Square to West Town Square, the Blain Gilbertson Family Heritage Bridge was built. This pedestrian bridge is the defining feature of the Town Square project and provides a connection across the river while also creating a waterfront experience for downtown visitors. The focal point of the bridge is a 30-foot-tall sculpture called Resilience emerging from two bridge piers and meeting in the middle as a symbol of the community’s resilience to the challenges to survive, adapt, and grow amid economic challenges to the community. The bridge was funded entirely by private contributions from residents and local businesses, demonstrating the community’s support and investment in the Town Square project.
River Street Reconstruction

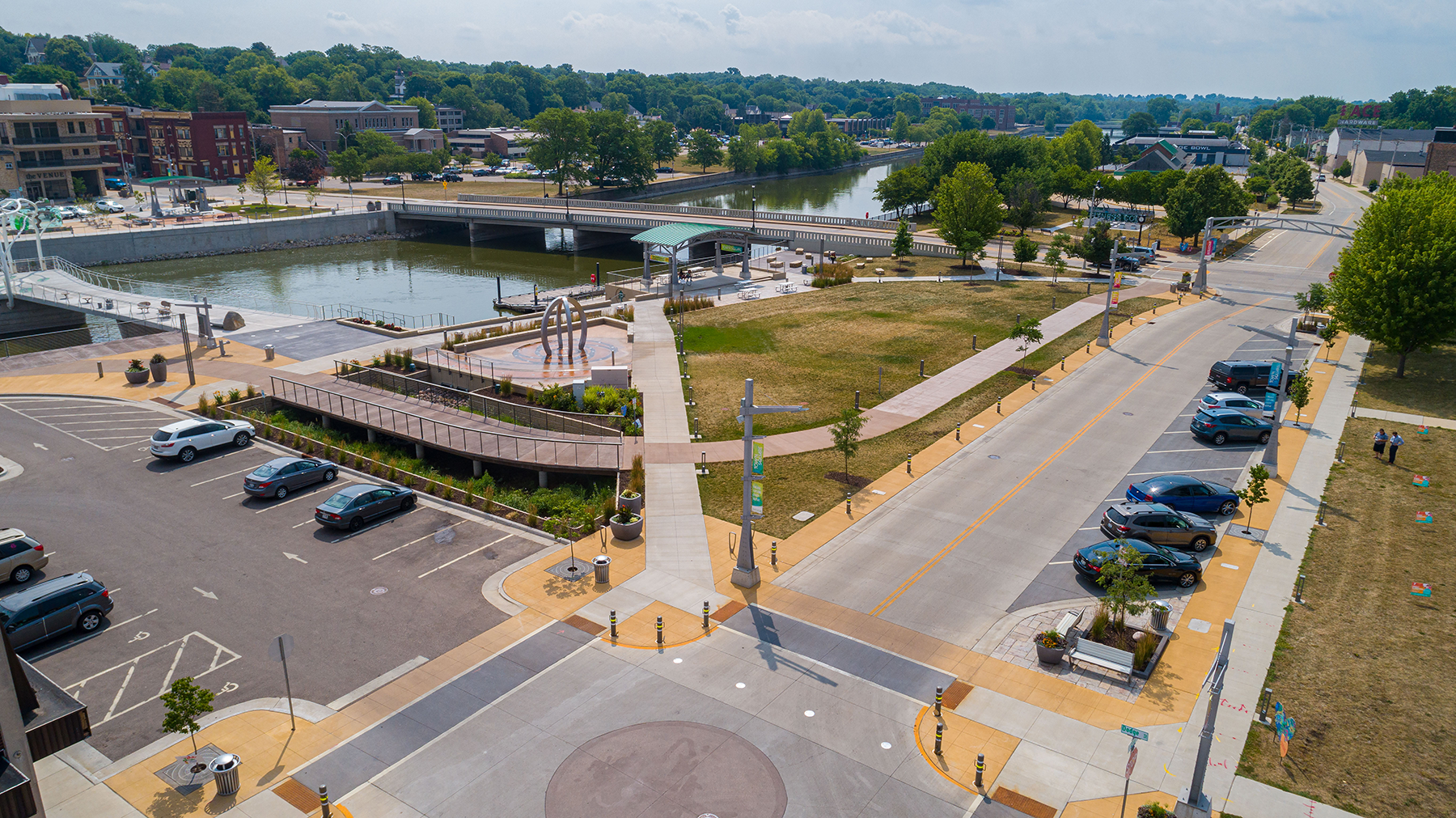

River Street was identified as an integral component of the West Town Square project to be used as a festival street during programmed events. The festival street design was predicated on a shared-use, with a narrow street section to be shared by cyclists and autos and angled direction-specific parking to provide parking for a typical day and a dedicated area for tents or vendors during events. Other improvements within the River Street corridor include in-ground receptacles, a removable bollard system, a raised pedestrian-friendly intersection at Dodge Street, hardscaping, and other amenities coordinated with the other West Town Square stages. Custom gateway features and light poles with LED luminaires were provided by the Forward Janesville Foundation.
- APWA Wisconsin Project of the Year Award — Janesville West Town Square
- ASCE Wisconsin Engineering Project Achievement Award — Janesville West Town Square
- APWA Wisconsin Project of the Year Award — Janesville East Town Square
- ACEC Wisconsin Engineering Excellence State Finalist Award — Janesville East Town Square
